Zyxel Prestige 2000w VoIP Settings Configuration Guide

zyxel prestige 2000wZyXEL's P-2000W VoIP Wi-Fi phone, compatible with IEEE 802.11b wireless standard, is a perfect solution for Voice over IP applications. It allows users to make or receive phone calls as long as they are in the coverage of IEEE 802.11b or 11g wireless Access Points. By using the P-2000W, users no longer have to pay expensive communication fees and can enjoy the convenience of wireless mobility.

STEP 1

BEFORE YOU BEGIN, please note the following:

The appropriate version of the firmware needed is WV.00.01. If you do not yet have this firmware installed, please do so before configuration. Firmware is available within the Support section of the ZyXEL web site:

www.ZyXEL.com

If the ZyXEL Prestige 2000W_v2 phone key pad is locked, press and hold the # key for 3 seconds or until the phone icon is displayed.

The ZyXEL Prestige 2000W_v2’s default network mode is DHCP. If you require either STATIC or PPPoE connection type you must:

- On the phone, press the Menu key.

- Scroll down to #4 Net Settings and press Select.

- Select #1 Network Mode

- Scroll down to either Fixed IP or PPPoE and press Select.

- The phone will display “Ok”.

If you selected Fixed IP, select and enter in the appropriate entry locations your IP Address, Subnet Mask and Gateway.

OR

If you selected PPPoE, select and enter in the appropriate entry locations your PPPoE Username and PPPoE Password

STEP 2

The following screen images represent a recommended configuration of the ZyXEL Prestige 2000W_v2 for use on the ABC-VoIP service. These parameters need to be manually entered using the device’s web server GUI as no auto-configuration method is not yet available.

- From the phone’s display, select Menu by pressing the Left soft key.

- Using the Up/Down arrow buttons scroll and hi-light ‘Information’ and press the Select key.

- Scroll to IP Address and press the Select key.

- In an Internet browser on a PC connected to the same network enter the IP address displayed on the ZyXEL Prestige 2000W_v2.

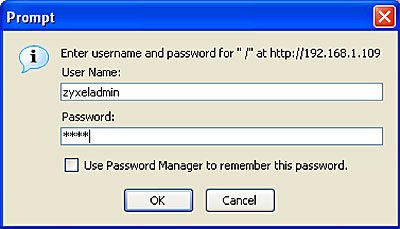

- When prompted enter the User Name ‘ZyXELadmin’ and password ‘1234’ as illustrated below. The Password will be represented by ****.

zyxel configuration step 1

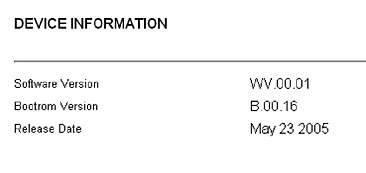

The following information will display in your browser.

zyxel configuration step 2

STEP 3

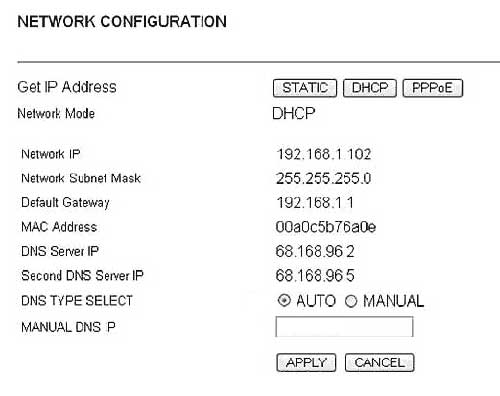

From the Left panel, select Network to display the following screen.

grandstream budgetone 100 configuration step 5

Select the appropriate network connection type for your network: STATIC, DHCP, OR PPPOE.

If you are using a STATIC connection, enter all network parameters.

If you are using a DHCP connection, leave DNS type as auto

If you are using a PPPoE connection, you must enter the PPPoE User/Login Name and PPPoE Password provided by your DSL Internet service provider.

Click the Apply button.

Click SIP in the Left panel. Complete all SIP proxy parameters as listed below;

SIP Server Address: sip.ABC-VoIP.com

SIP Server Port: 5060

Registrar Server Address: sip.ABC-VoIP.com

Registrar Server Port: 5060

Register Expiry Time: 3600

Display Name: Enter your full name, this will show up as part of your caller ID.

User ID: Enter the account number assigned to you when signed up for ABC-VoIP service.

Password: Enter the password that you chose when you signed up for the service.

Click the Apply button.

STEP 4

Click NAT TRVSL in the Left panel. Using the drop down menu for Select Type choose NONE

Click the Apply button.

STEP 5

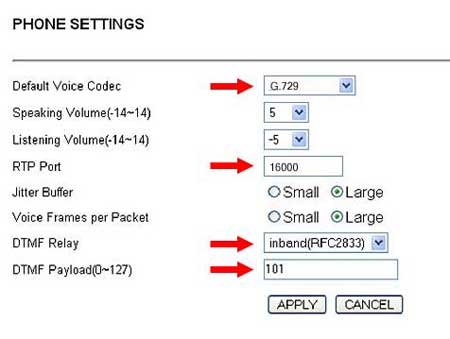

Click on PHONE in the Left panel. Enter the parameters as indicated:

Default Voice Codec:"G.729"

RTP Port: 16000

DTMF Relay: inband(RFC2833)

DTMF Payload: 101

grandstream budgetone 100 configuration step 6

Click the Apply button.

STEP 6

Power cycle you phone by pressing and holding the red power OFF button for three (3) seconds.

Then press and hold the red power button for two (2) seconds until the device restarts.

Monitor the registration process on the display screen. The ZyXEL Presitge 2000W_v2 will first Associate with your access point, display the AP SSID and then the phone’s IP Address.

Shortly thereafter, the phone will display Registered . When registered on the ABC-VoIP network, you will ready to make and receive calls.

STEP 7

Make Calls!

NAT/Firewall Issues

If you get one-way audio, please take the time to double check your configuration as above. If everything appears to be correct, the problem may be NAT/firewall. Make the following changes and try again.
